Diagrams

Static structure diagrams

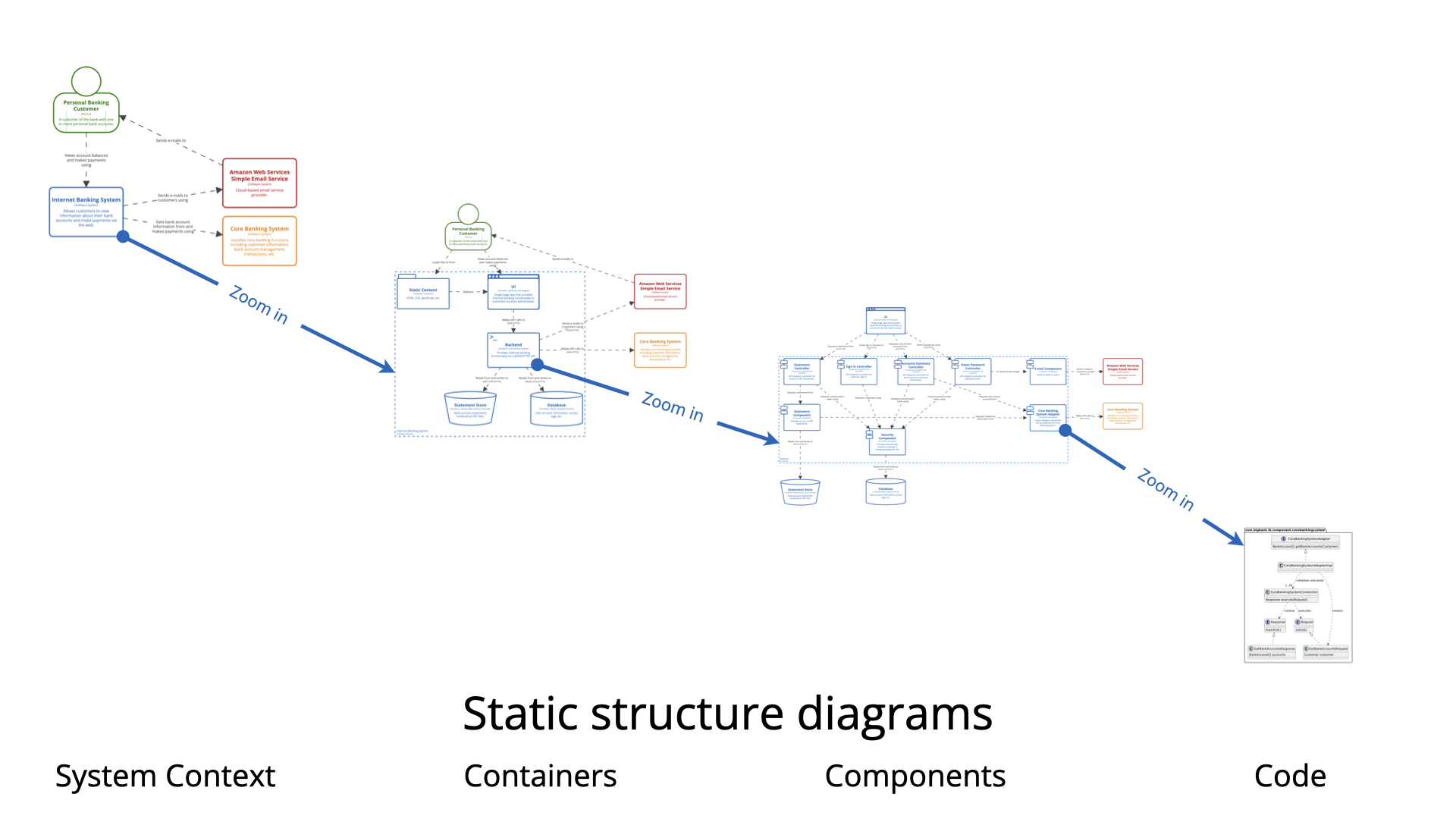

The C4 model is named after the core set of static structure diagrams: (system) context, containers, components, and code.

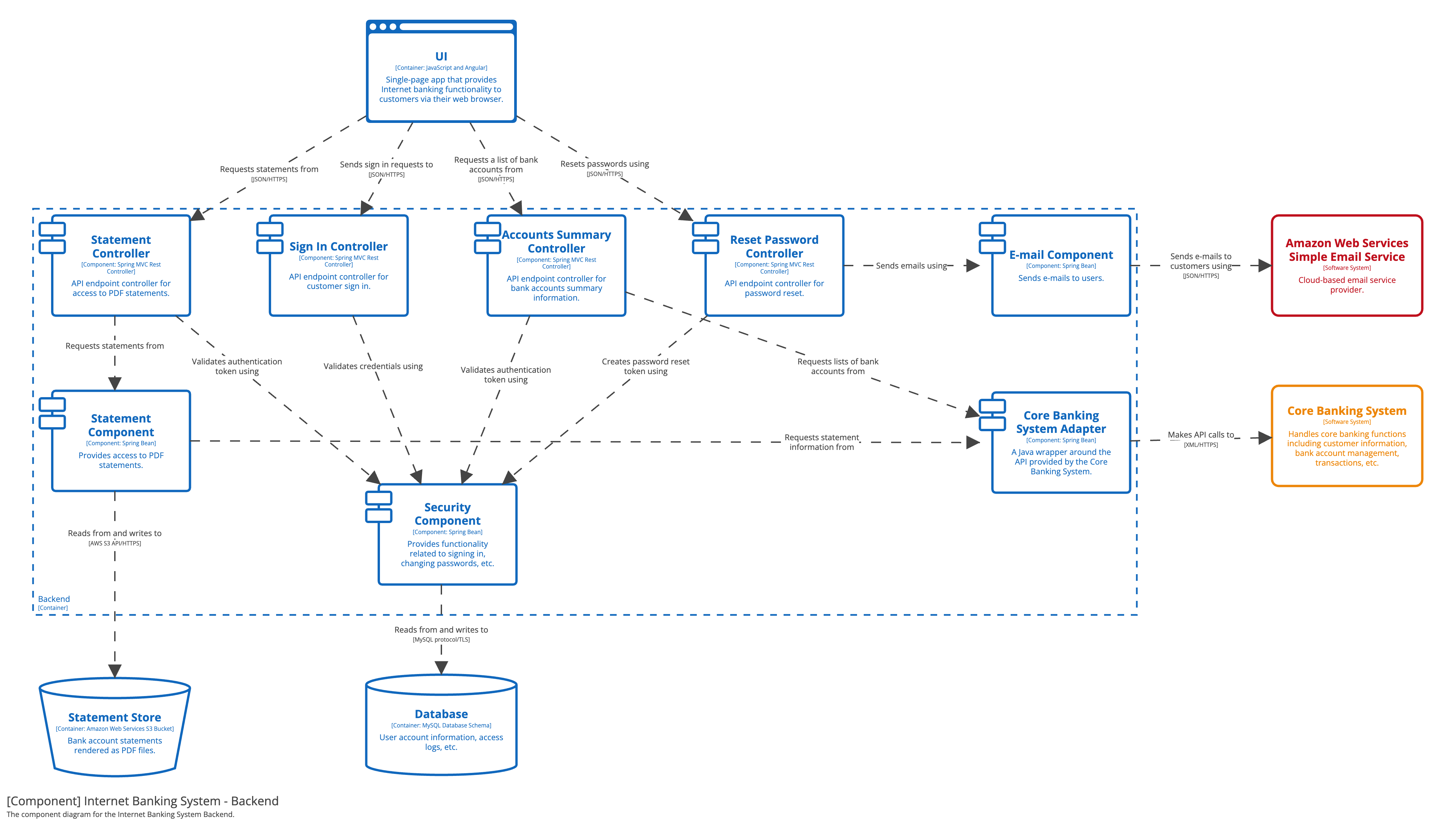

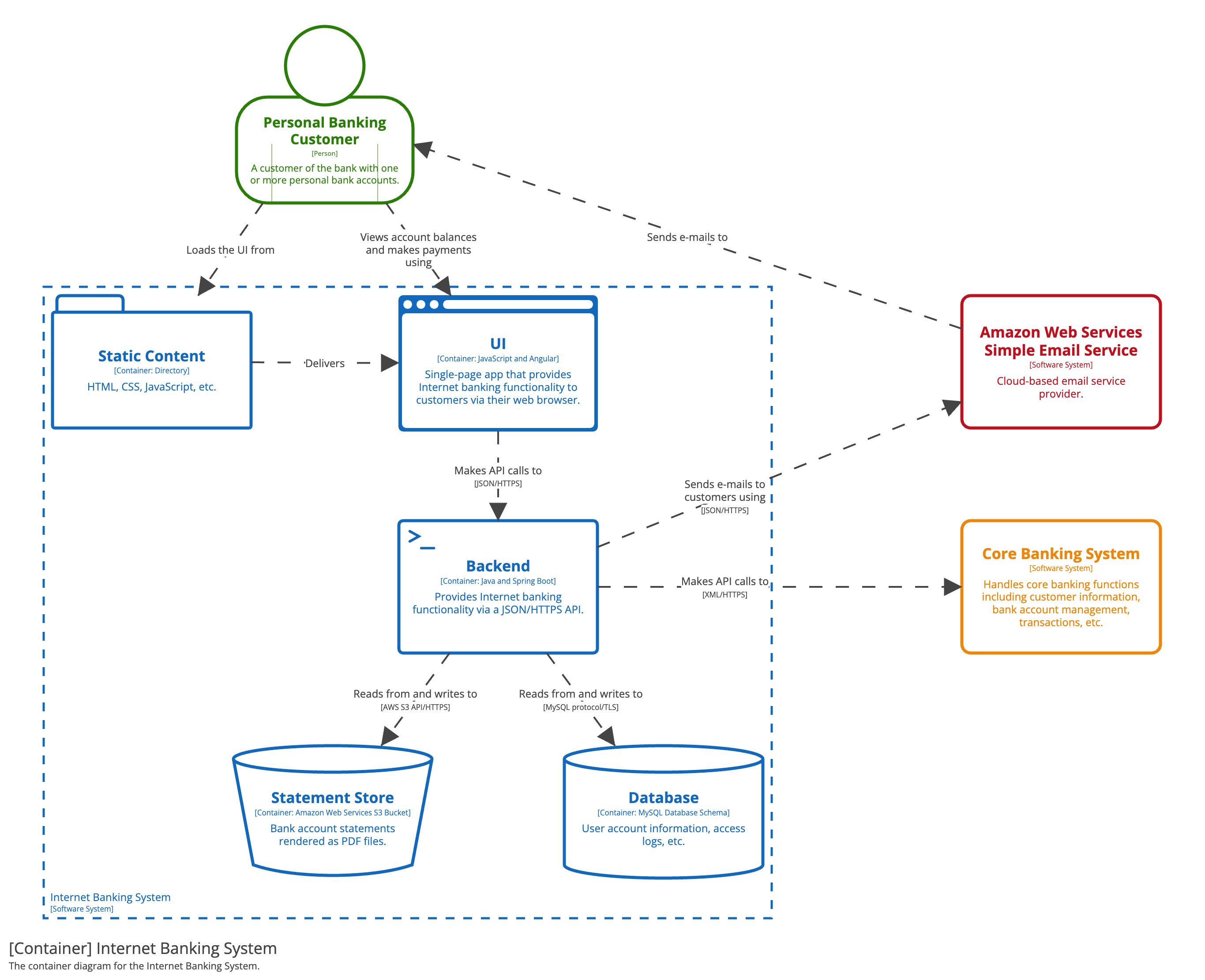

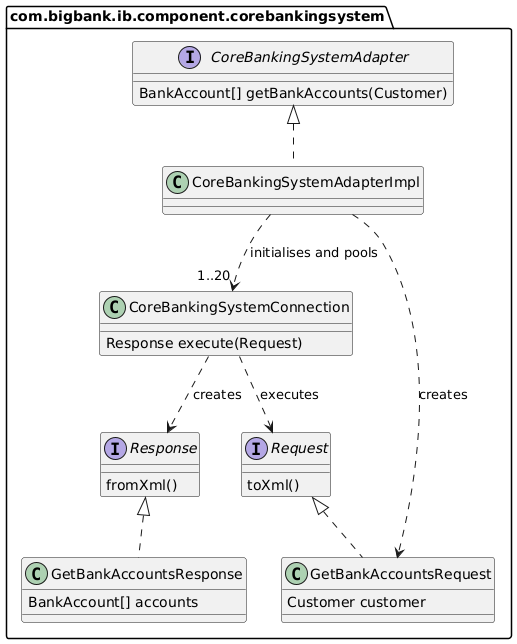

1. System context diagram	2. Container diagram	3. Component diagram	4. Code diagram

The different levels of zoom allow you to tell different stories to different audiences. That said, you don’t need to use all 4 levels of diagram; only those that add value - the system context and container diagrams are sufficient for most software development teams.

Supplementary diagrams

In addition, there are 3 supplementary diagram types:

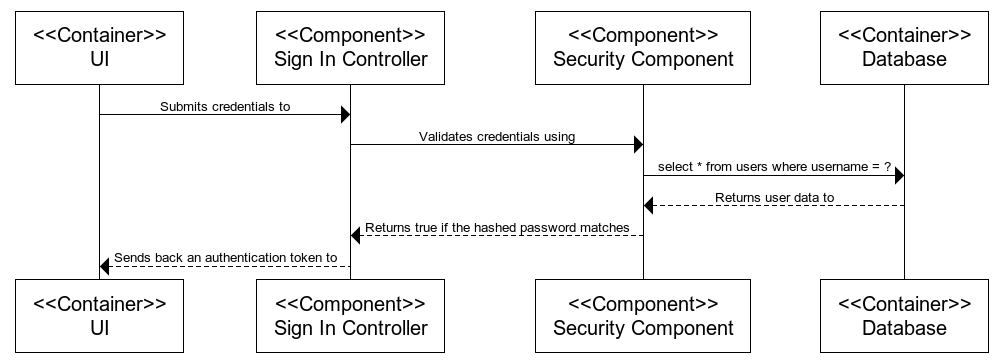

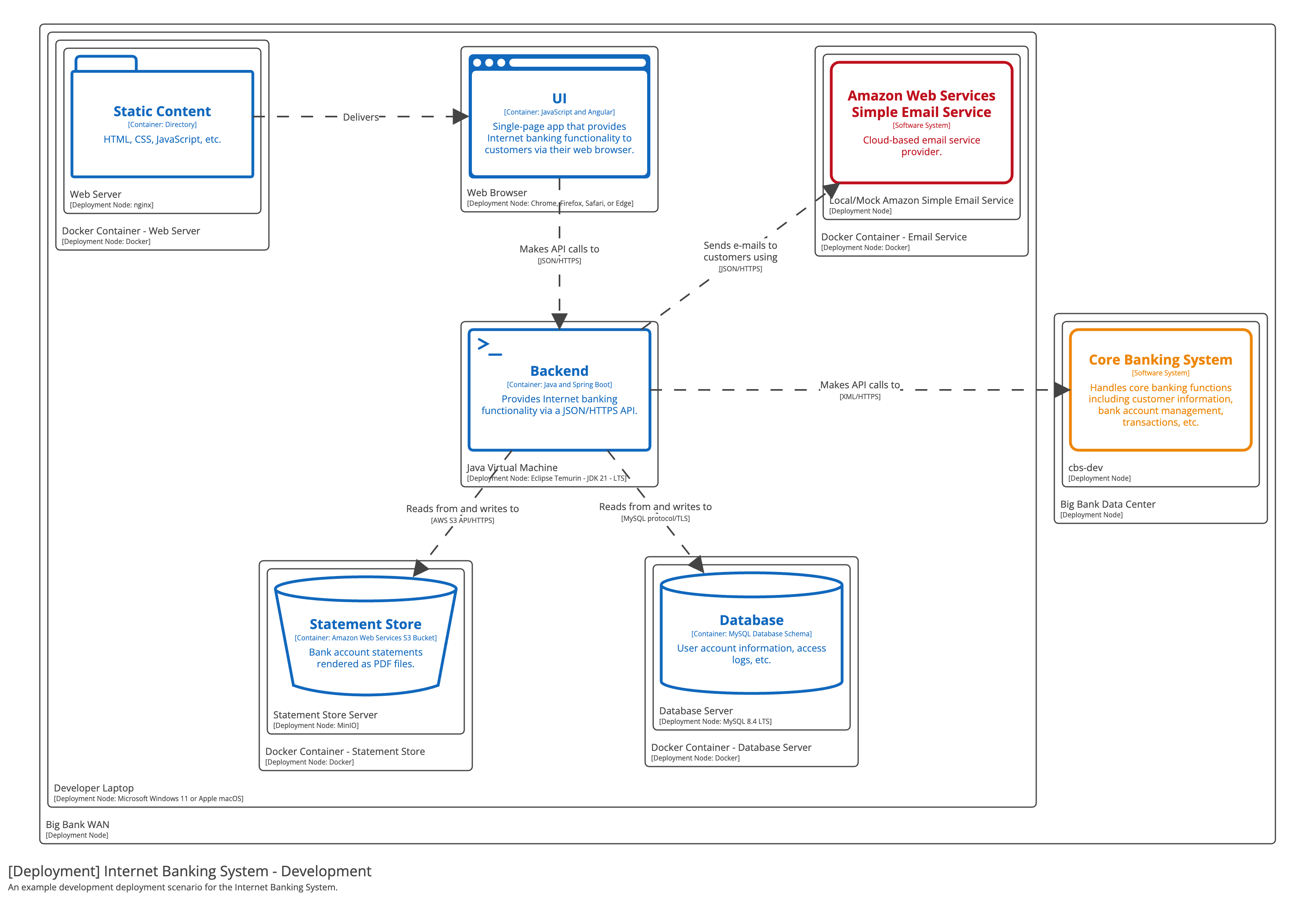

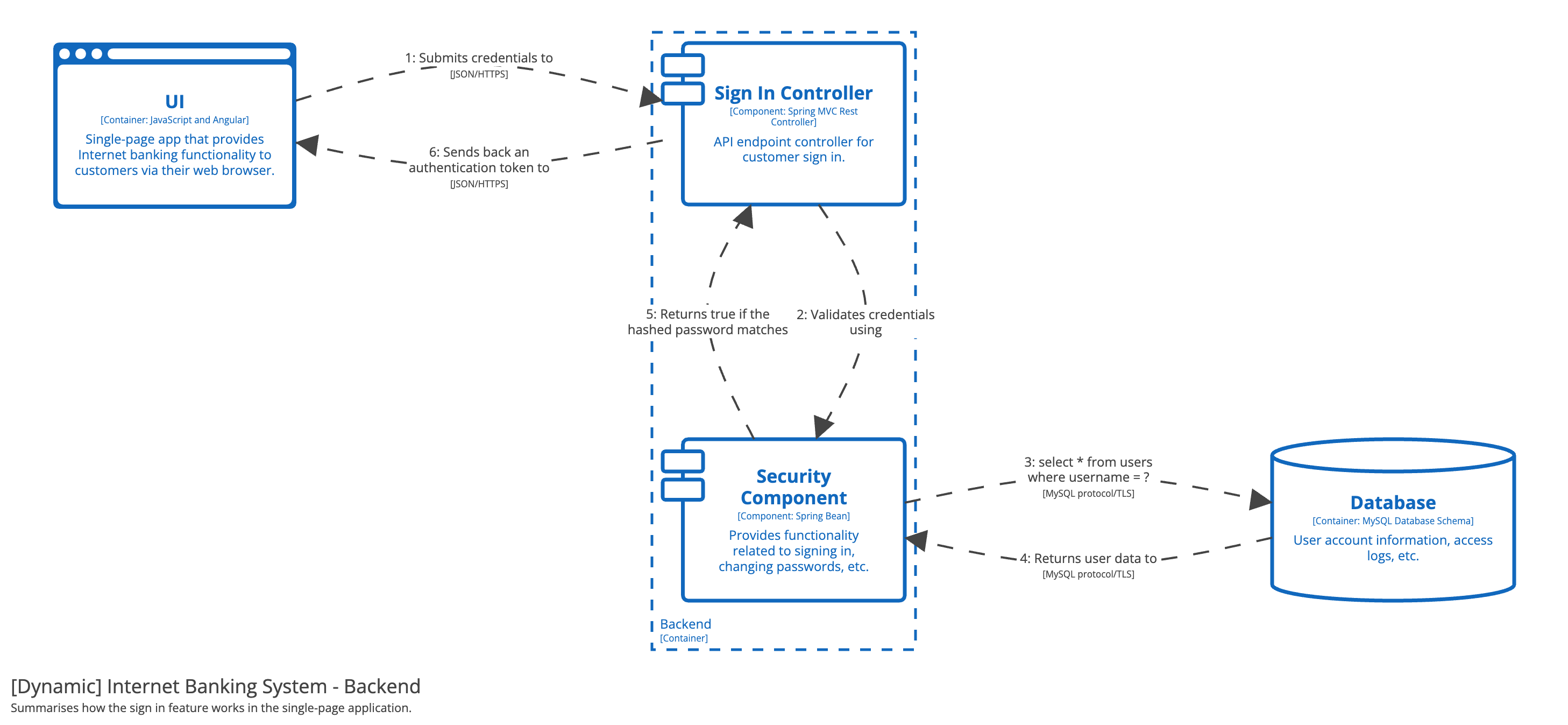

System landscape diagram	Dynamic diagram	Deployment diagram
